Surface Mount

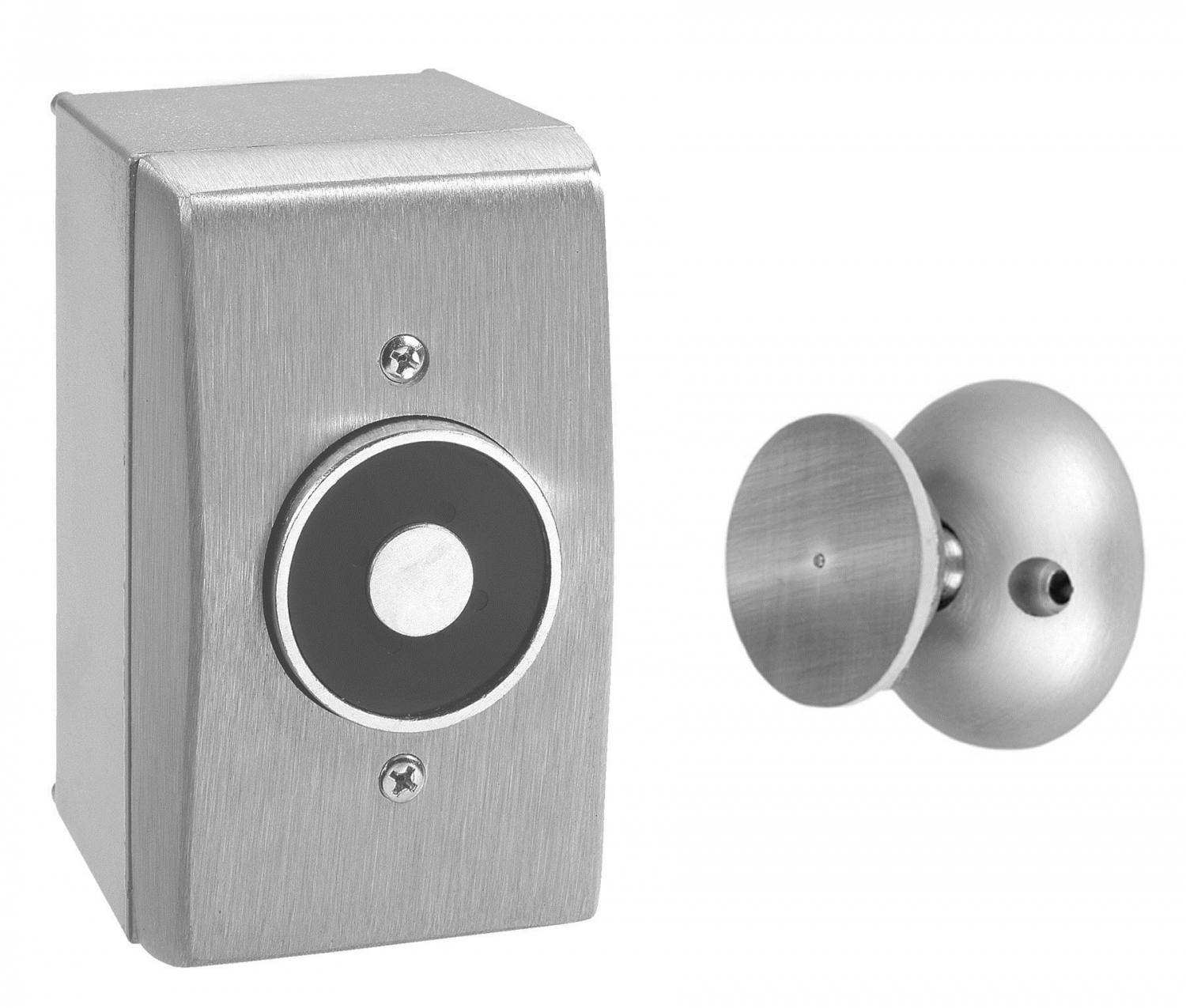

2300 - Surface Wall Mount

Standard Features

• 4-1/8" total projection from wall to face of door (5-1/8" if using complimentary 1" extension)
• Tri-voltage units for easy stocking and installation 12V DC, 24V AC/DC or 120V AC
• Provided with one complimentary 1" extension
• 35 pound holding force
• All metal components - No plastic parts
• UL/ULC listed for smoke barrier or labeled fire doors
• Listed by the California State Fire Marshall
• Armature features two pivot points which each have 360 degree mobility to help door alignment and reduce installation time
• Positive release button alleviates residual magnetism
• Average weight per unit = 3.0 pounds
• Comparable to Rixson FM996, Sargent 1560, LCN SEM7830 / SEM1960 and Dorma EM-508

Shipping

• US28 - Brushed Aluminum ships within 3 days
• All other finishes are special order and can take 2-3 weeks before shipment

2100_2300_Cut_Sheet.pdf Opens with: Adobe Acrobat

2300_Instructions.pdf Opens with: Adobe Acrobat
