5300 Series - L Lever Style

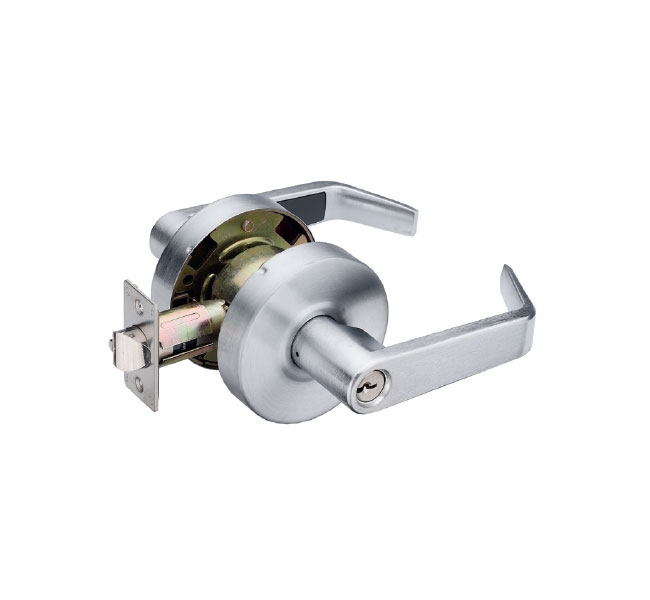

5300 Series – LH5300 – Cylindrical Grade 2

• Designed for medium to high traffic commercial applications
• No exposed mounting screws
• Non-handed
• Through Bolt Mounting 2-5/8” center to center reduces chassis rotation

Features:

• Quality heavy duty return springs to reduce lever sag
• Heavy rose liner material provides attack resistance
• Heat treated heavy gauge steel spindles
• The rose assembly is adjustable for door thickness

Function:

• Passage – Latchbolt retracted by lever on either side.
• Privacy – Pushbutton locks outside lever.  Turning inside lever or emergency turn unlocks outside lever.  Inside lever always active.
• Single Dummy – Single dummy trim for one side of door.  Used for door pull or as matching inactive trim.
• Communicating Latch – Fir twin communicating or exit doors where one side operation is required.  Blank rose outside.  Inside lever operation.
• Office – Pushbutton locks outside level until unlocked by key or by turning inside lever.
• Entrance – Turn/push button locking: pushing/turning button locks outside lever requiring key until button is manually unlocked.  Push button locking: pushing button locks outside lever until unlocked by key or by turning inside lever.
• Classroom – Outside lever locked and unlocked by key.  Inside lever always unlocked.
• Storeroom – Outside lever is fixed.  Entrance by key only.  Inside lever always unlocked.
• Communicating – Double Classroom: Latchbolt retracted by lever on either side unless locked.  Key locks or unlocks its on lever.
• Institutional – Double Storeroom: Both levers always locked.  Latchbolt retracted by key from either side.

Certifications:

• ANSI/BHMA certified A156.2 Series 4000 Grade 2
• ADA Compliant A117.10
• cUL/UL Listed for all functions up to 3 hours

Specifications:

• For Doors               1-3/8” to 1-3/4” (35mm to 44mm)
• Backset                    2-34” (70mm) standard
• Front                        Stainless Steel or Brass, 2-1/4” x 1-1/8” (57mm x 29mm)
• Strike                        ANSI (4-7/8” x 1-1/4”) strike standard
• Roses                        3-1/2” (90mm) diameter stainless steel or brass base metal
• Handing                  Non-handed
• Latchbolt                Stainless steel ½” (12.5mm) throw standard
• Cylinder                  Solid brass 6-pin cylinder Schlage C keyway with two keys per lock standard
• Finish                       US26D (626), US10B (613), US3 (605)
